Hidraulinis kraštų užspaudimo įrankis | 16-240 mm² | 12 t (YT-22861)

(10/10)

50,14 €

Prekės kodas: YT-22861

Kiekis:

Aprašymas:

Gamintojas:
YATO

Rankinės replės su hidrauliniu cilindru. Skirta užspausti elektrinius konduktorius arba suveržti lynus

Numeris YT-22861
EAN 5906083228612
plieninis
ilgis (mm) 470
dalių skaičius (vnt.) matrica 16/25/35/50/70/95/120/185/240 mm ²
Svoris (kg) 5,90
Darbinis diapazonas 16-185mm Al ² Cu 16-240mm ²
jėga (t) 12

Product description
Hand operated hydraulic cylinder. Designed for effective crimping of terminals on electric wires or crimping cables.

Thanks to the hydraulic cylinder, clamping of large ends does not require effort.

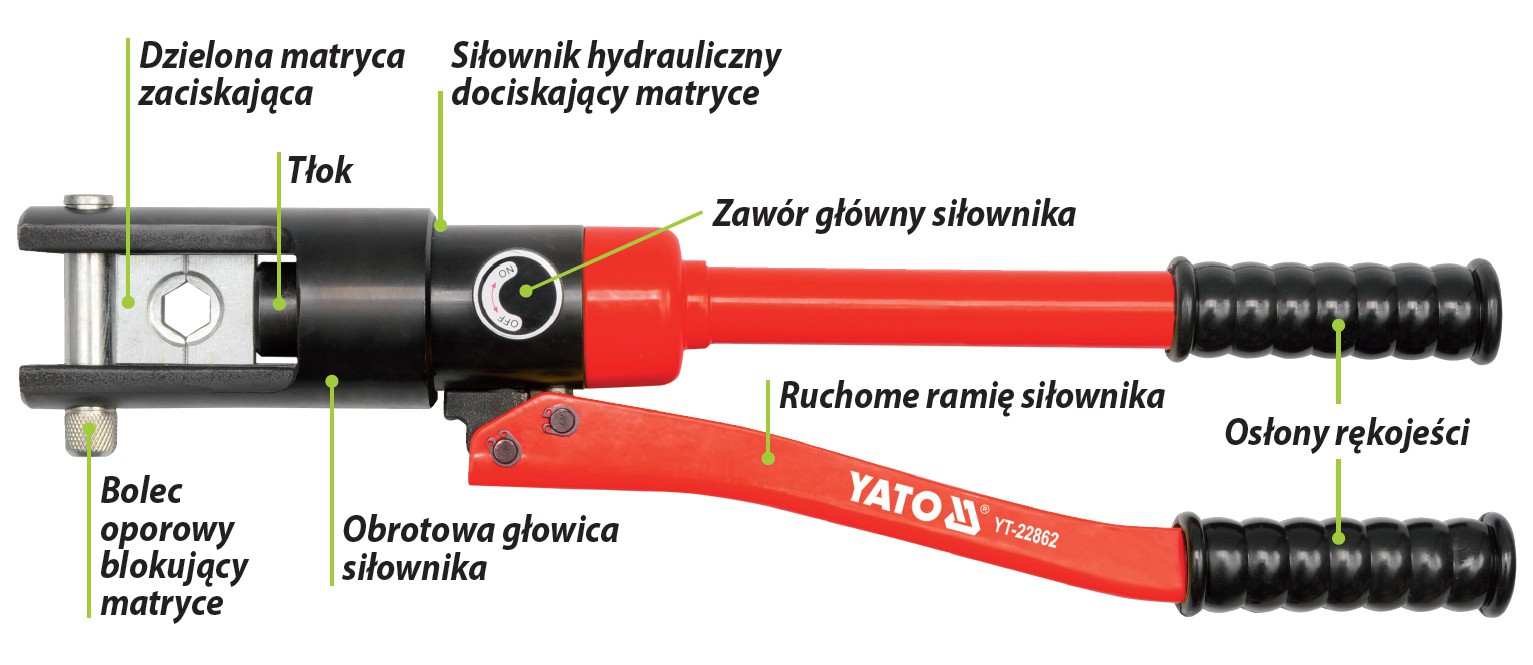

Features of the Prague brand YATO

- Retaining bolt blocking the matrix
- Divided crimping matrix
- Piston
- Rotary actuator head
- Actuator main valve
- The movable arm of the actuator
- Handle guard

Crimping range:
Aluminum: 10-185 mm2
Copper: 10-240 mm2

Length: L = 470mm
Pressure: 12T

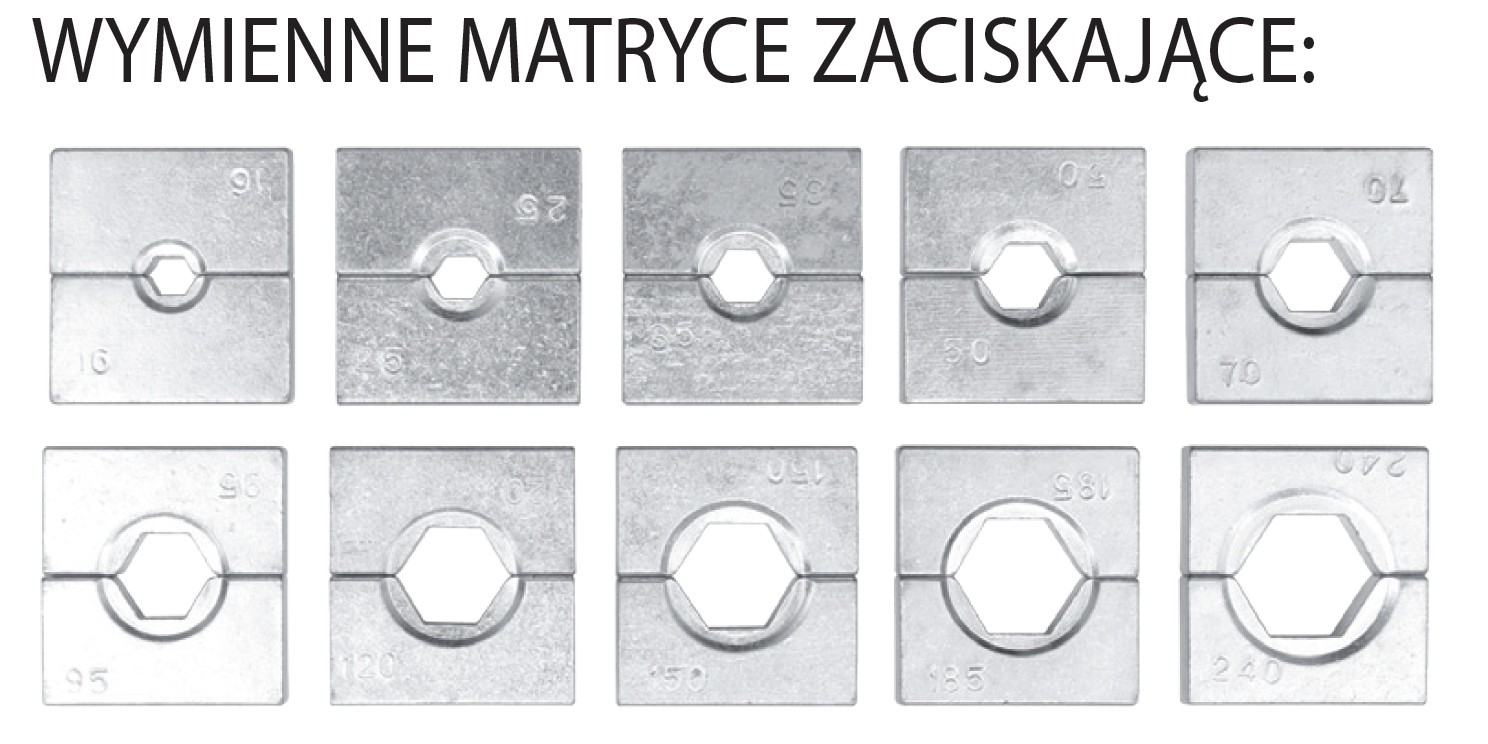

Size of clamping jaws (mm2): 16; 25; 35; 50; 70; 95; 120; 150; 185; 240
Destination / Application
Effective clamping of the terminals on the electrical wires. Crimping of steel ropes.
Technical data
Index number YT-22861
EAN 5906083228612
Brand Yato
PCS unit
Gross Weight (kg) 5.6670
Master Carton MC 4
Pal 80
Size [mm] 16-240
Application of Electric

SIZE: 16-240M2; CRIMPING RANGE: ALUMINIUM TERMINAL- 16-185MM2, COPPER TERMINALS- 16-240MM2; WORKING PRESSURE: 12T; DIE CONFIGURATION: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240MM2; USE 32# MECHANICAL OIL; HRC 15
