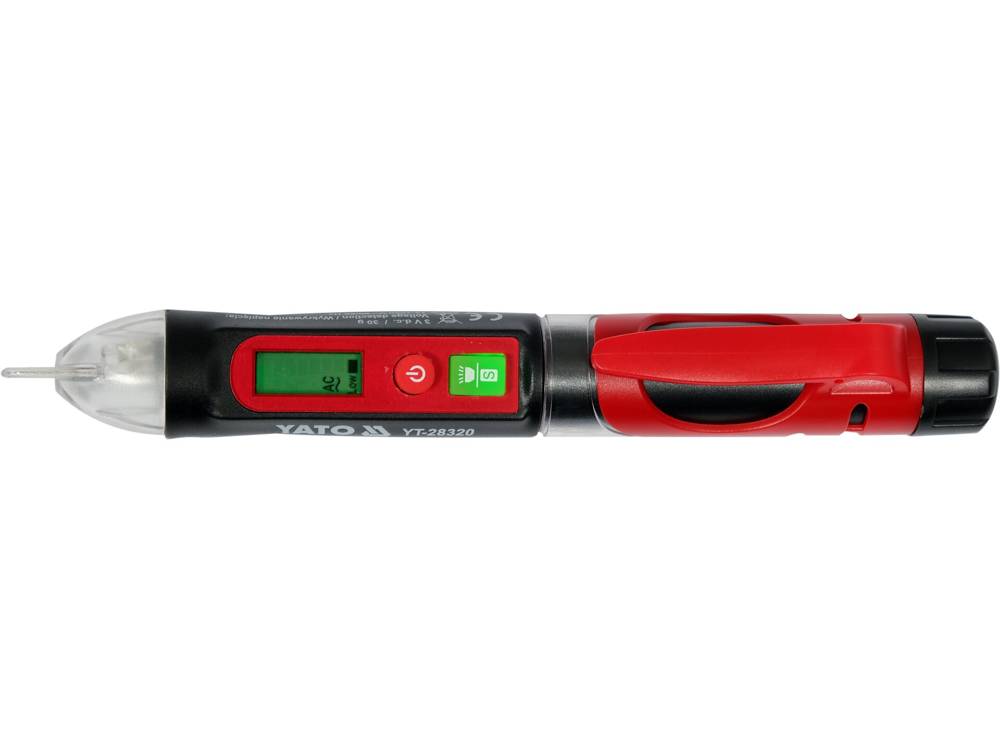

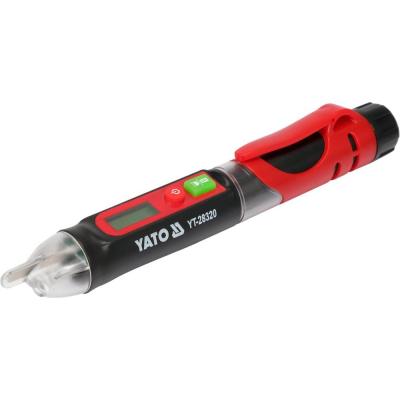

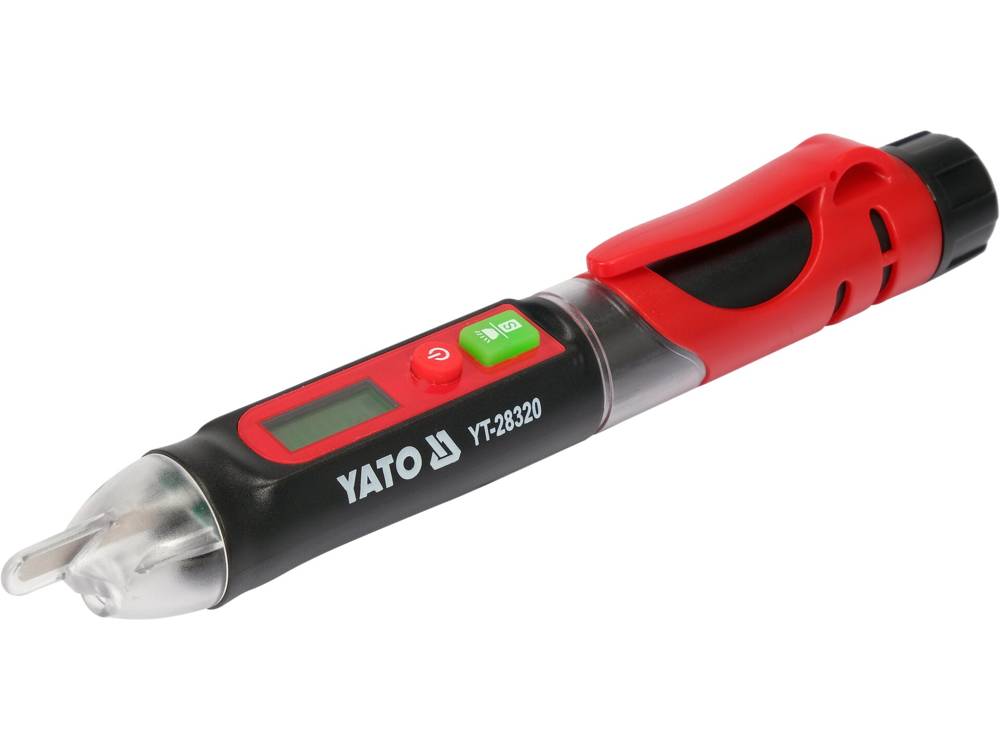

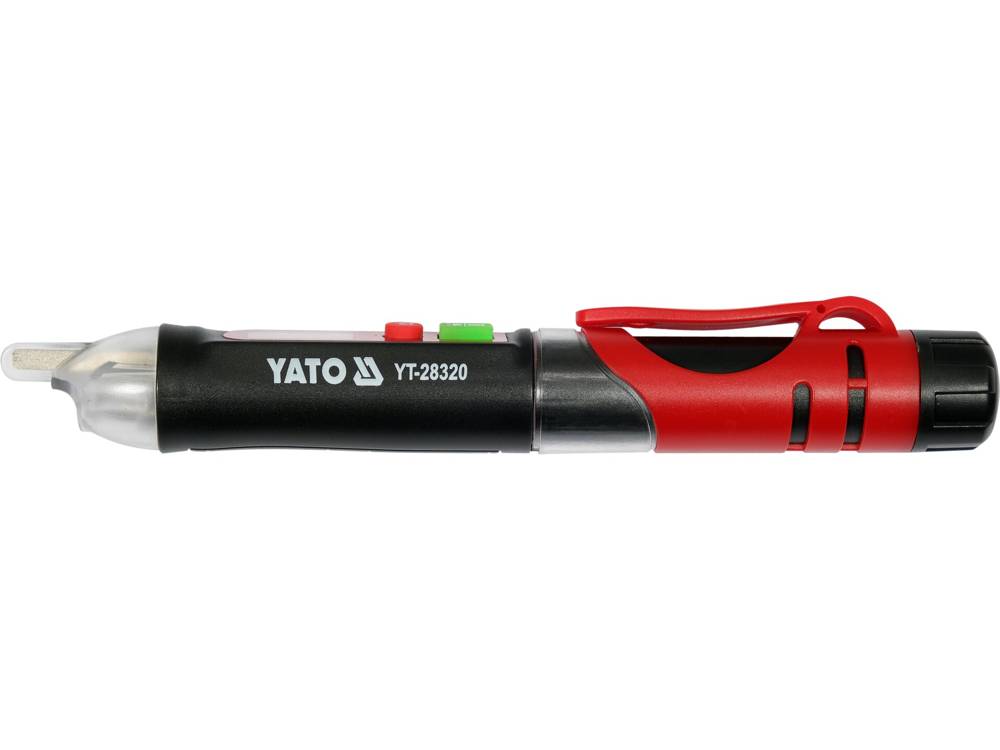

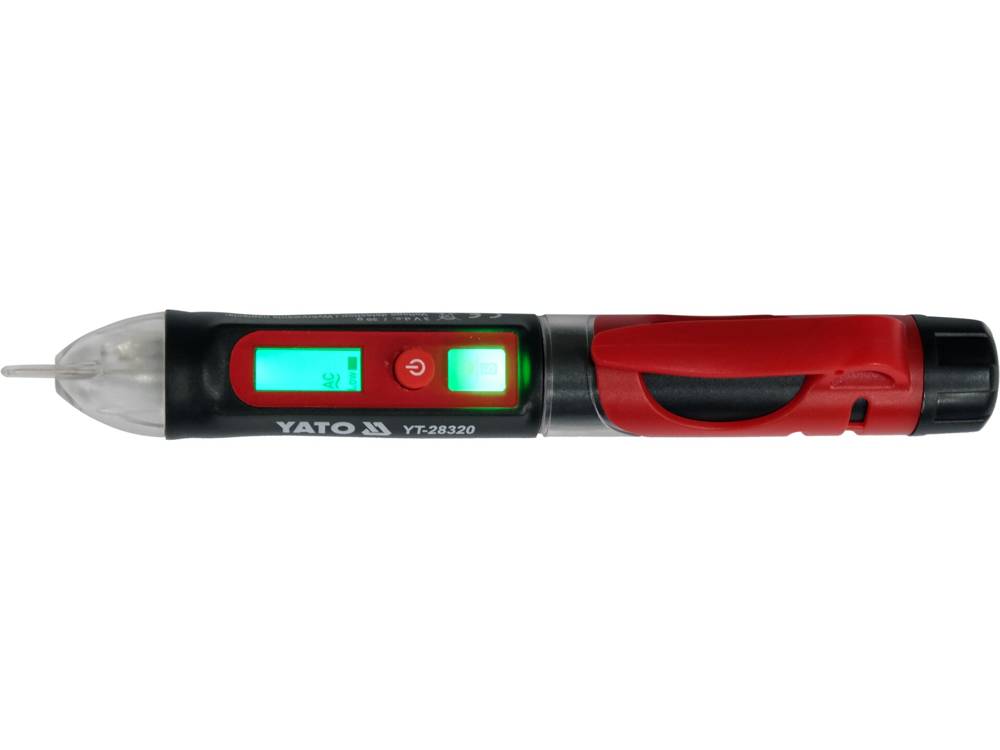

Indukcinis įtampos testeris | su ekranu | 12-1000V (YT-28320)

(10/10)

9,73 €

Prekės kodas: YT-28320

Aprašymas:

Gamintojas:
YATO

INDUCTION VOLTAGE TEST WITH DISPLAY
Symbol
YT-28320
Material
ABS
Application
electric
Operating temperature range
0~40˚C
storage temperature
-10 ~ +50 ˚C
Power
battery
Battery type
2x1.5V; AAA
Length
165mm
Tension
3Vdc
Switch
YES
Display type
LCD
Voltage - inductive method
12-1000Vac
Continuity test
YES
conduction test
NO
Sensitivity adjustment
Yes
LED backlight
YES
LED indicators
Yes
The frequency of the measured voltage
50/60 Hz
Flashlight function
NO
Low battery indicator
Yes
Workplace lighting
Yes
Sound signal
Yes
Automatic shutdown
Yes

The non-contact AC voltage indicator detects the presence of voltage in an insulated conductor and at a short distance from it. The detection of voltage is indicated by a red LED, a sound signal and an indication on the LCD display.

The tester uses the phenomenon of electromagnetic induction. The closer to the voltage source, the higher the frequency of indications. When turned on, the tester operates in a low sensitivity mode, in which the frequency of indications increases when the wire is touched. In high sensitivity mode, the indication frequency increases approximately 1 cm from the cable. The tester also enables "non-contact" detection of a break in a live electric wire. At the point of interruption, the tester will stop signaling the presence of voltage.

sound, light (LED diode) and LCD display
AC voltage detection by inductive method: 12 - 1000 V
low sensitivity mode* - detection of AC voltage at a distance of up to 1 cm from an insulated wire, intensive indications after touching the wire
high sensitivity mode* - detection of AC voltage up to 5 cm from an insulated wire, intensive indications up to 1 cm from the wire
wire continuity test by inductive method
two-stage sensitivity adjustment of the tester
illumination of the workplace with a built-in white LED
probe length: 165 mm
automatic shutdown of the tester after 3 minutes
low battery indication
power supply: 2 x AAA
*distances and vigilance were determined based on ~230V mains voltage detection tests
