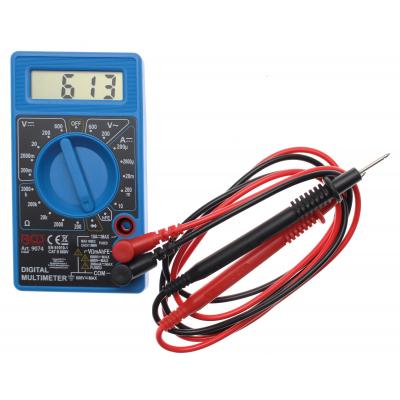

Skaitmeninis multimetras | 3 1/2 Digit (9074)

(10/10)

12,52 €

Prekės kodas: 9074

Kiekis:

Aprašymas:

Gamintojas:
BGS-technic

Description
suitable for measurements in CAT II area
3 1/2 digit, 7 segments, 12.5 mm LCD
indication for overflow, polarity and low battery voltage
measuring ranges for resistance, AC voltage, DC voltage, diode voltage drop and hFE transistor measurements
operating temperature: 10°C ~ 40°C, 0 ~ 75 % relative humidity
power supply: 2x 1.5 V AAA battery
weight: 140 g (incl. battery)
DC voltage measuring ranges:

200 mV, resolution: 10 µV, accuracy: ±0.5 % +10 digit
2000 mV, resolution: 1 mV, accuracy: ±1 % +5 digit
20 V, resolution: 10 mV, accuracy: ±1 % +5 digit
200 V, resolution: 100 mV, accuracy: ±1 % +5 digit
600 V, resolution: 1 V, accuracy: ±1.2 % +5 digit
AC voltage measuring ranges:

200 V, resolution: 10 mV, accuracy: ±0.5 % +10 digit
600 V, resolution: 1 V, accuracy: ±0.5 % +10 digit
DC current measuring ranges:

200 uA, resolution: 100 nA, accuracy: ± 1.8 % +2 digit
2000 uA, resolution: 1 µA, accuracy: ± 1.8 % +2 digit
20 mA, resolution: 10 uA, accuracy: ±1.8 % +2 digit
200 mA, resolution: 100 µA, accuracy: ± 2 % + 2 digit
10 A, resolution: 10 mA, accuracy: ±2 % +10 digit
resistance measuring ranges:

200 Ohm, resolution: 0.1 mOhm, accuracy: +/-1 % +10 digit
2000 Ohm, resolution: 1 Ohm, accuracy: +/-2 % +4 digit
20 KOhm, resolution: 10 Ohm, accuracy: +/-2 % +4 digit
200 KOhm, resolution: 100 Ohm, accuracy: +/-2 % +4 digit
2000 KOhm, resolution: 1 KOhm, accuracy: +/-2 % +4 digit
Technical data
Width 70 mm
Length 126 mm
Packaging suitable for wall hanging Yes
Gross weight 220 g
Height 24 mm
CE Standard Yes
