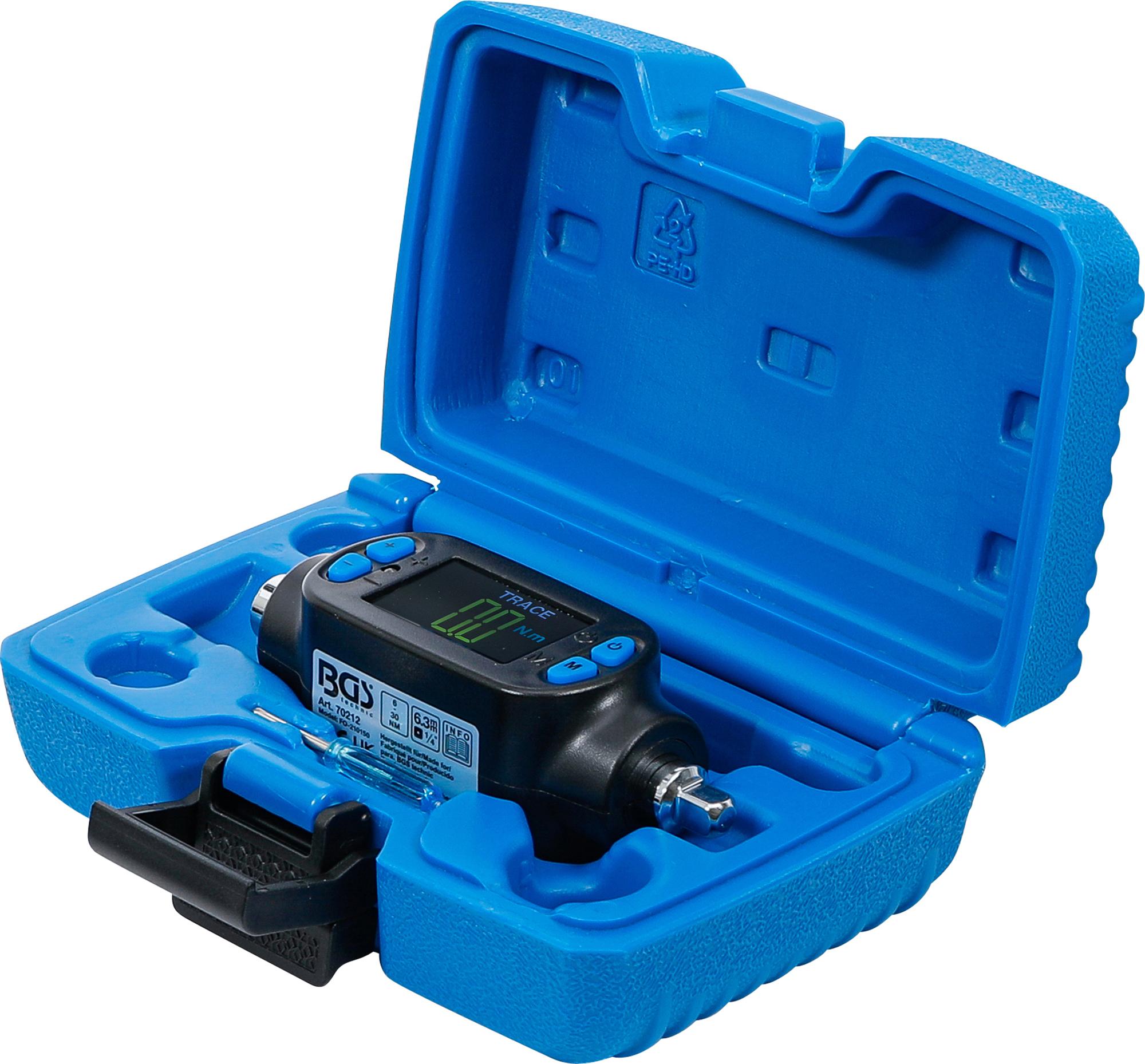

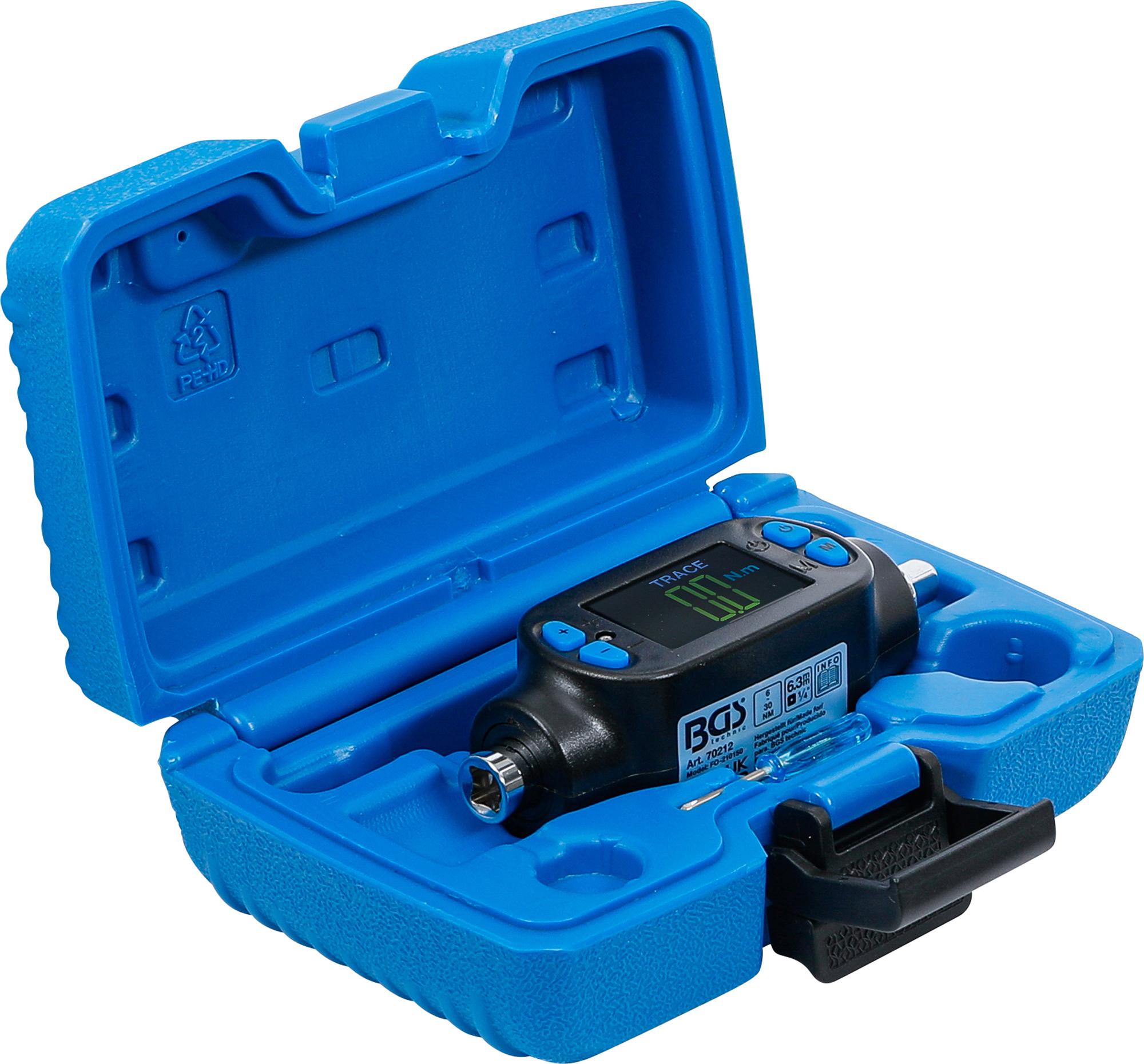

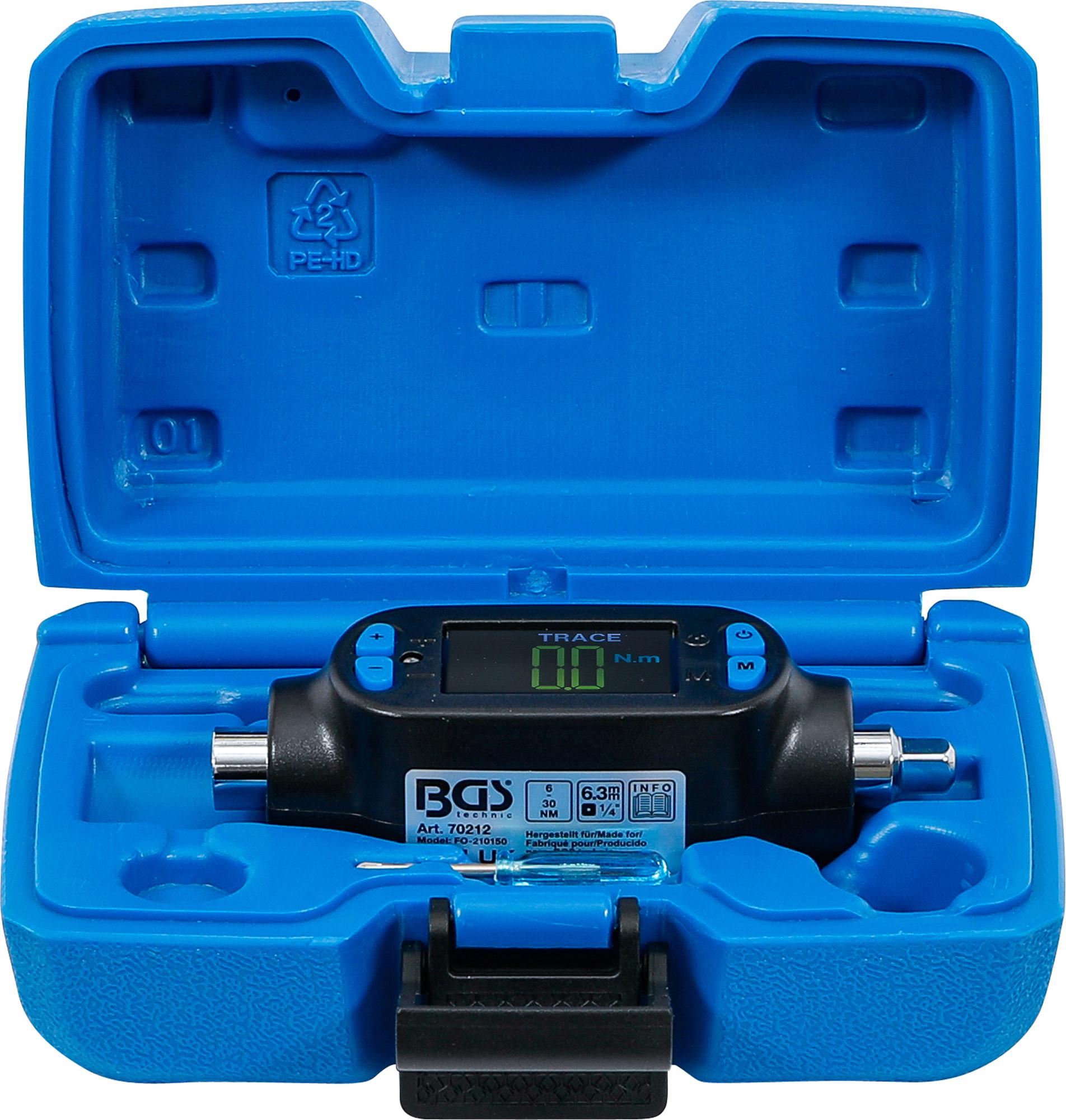

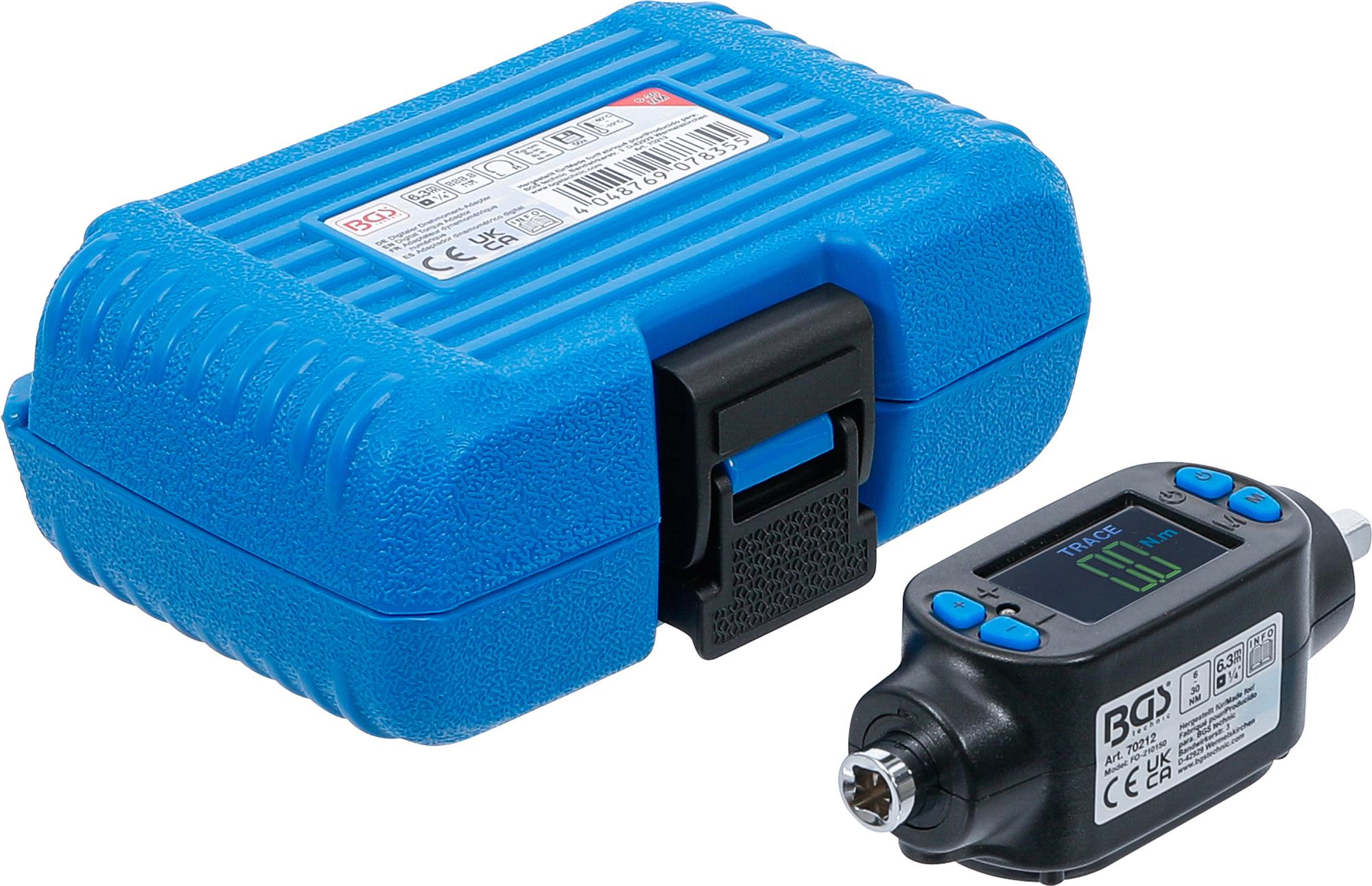

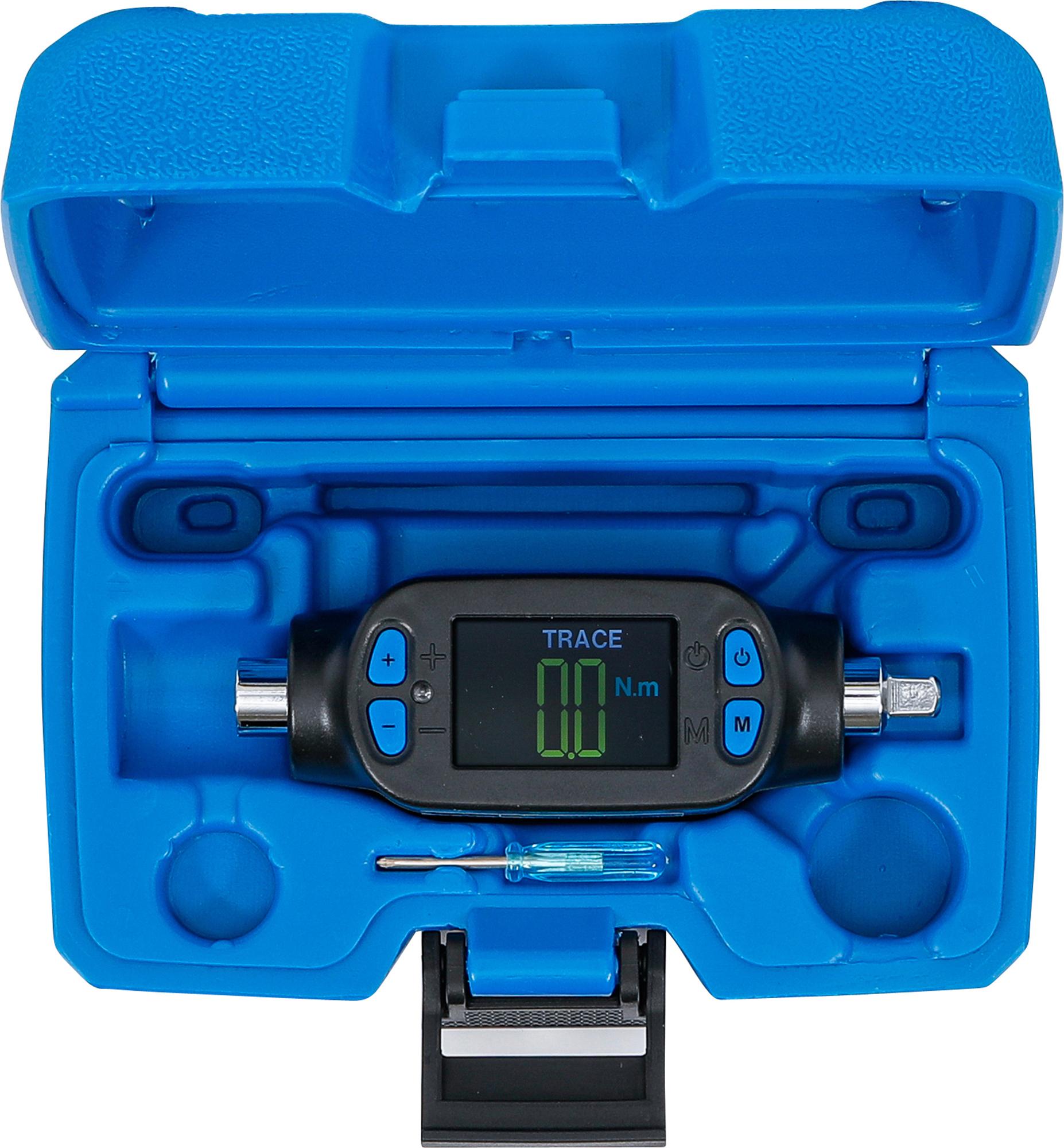

Skaitmeninis sukimo momento adapteris | 6.3 mm (1/4") | 6 - 30 Nm (70212)

(10/10)

79,60 €

Prekės kodas: 70212

Kiekis:

Aprašymas:

Gamintojas:
BGS-technic

Description
suitable for tightening screw connections according to the specified torque
can be used as a torque attachment with any drive element such as a conventional reversible ratchet
for controlled clockwise and counterclockwise tightening
very high measuring accuracy, documented with a test certificate
large illuminated LCD display
display mode: Track (concurrent display) and Peak (peak value detection)
with automatic switch-off function
reaching the desired torque is indicated by an acoustic signal (buzzer)
resolution: 0.1 Nm
memory capacity: 50 data sets
operation modes: Peak & Trace
unit selection: Kg-cm, Ib-in, Ib-ft, N-m
storage temperature: -20 °C - 70 °C (-4 °F - 157.9 °F)
Technical data
Drive profile size, metric 6,3 mm
Drive profile size, inch 1/4 "
Drive profile Internal square
Drive profile size, metric 6,3 mm
Output profile External square
Drive profile size, inch 1/4 "
Length 125 mm
Width 40 mm
Height 35 mm
Gross weight 302 g
Max. torque 30 Nm
Weight 300 g
Operating temperature -10 - 60 °C
Release accuracy +/- 4 %
Battery type 2 x AAA | 1,5 V
Min. torque 6 Nm
Humidity 15 - 90 %
