Spaustuvai pasukami | 125 mm (YT-6502)

Spaustuvai pasukami | 125 mm (YT-6502)
Spaustuvai pasukami | 125 mm (YT-6502)
10 (10/10)03
72,97 €
Prekės kodas: YT-6502

Aprašymas:

Gamintojas:
YATOYATO
Plotis (mm) 125
Svoris (kg) 10

Product description

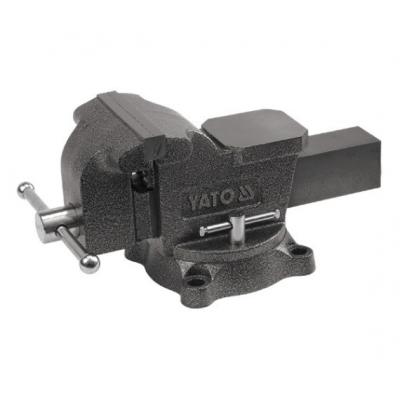

Gray vice vise, gray cast iron 125 mm replaceable jaws and hardened steel anvil. Trapezoid thread screw fully protected. Vise mounted on turntable. Surface covered with black "hammer" lacquer.
Destination / Application
For attaching material during machining.
Technical data
Index number YT-6502
EAN 5906083965029
Brand Yato
PCS unit
Gross Weight (kg): 11.7500
Master Carton MC 2
Pal 60
Jaw size [cal] 5
Jaw size [mm] 125
material cast iron
Type of fastening
Opening max [mm] 125


SIZE: 5", PRECISION CAST IRON BODY, WEIGHT: 20KG, FORCE: 15kN, REPLACEABLE JAWS, WIDTH: 125MM, HARDNESS: 45~52,
OPENING: 125MM, MOVING BODY & SWIVEL BASE - ROTATES 360DEGR., ANVIL: 65x80MM, CLAMP ROUND OBJECT USE: 15~64MM, THROAT DEPTH: 75MM, WITH SCALE RULER, LOCKING BAR, HAMMER PAINTING CHROME PLATED BAR
