Darbo įrankio aprašymas: Sriegio atnaujinimo, remonto rinkinys M6x1/M8x1,25/M10x1,5. 88 vnt (YT-1769)

Prekių krepšelis

0 Prekė(ių) - € 0,00

Sriegio atnaujinimo, remonto rinkinys M6x1/M8x1,25/M10x1,5. 88 vnt (YT-1769)

Sriegio atnaujinimo, remonto rinkinys M6x1/M8x1,25/M10x1,5. 88 vnt (YT-1769)
Sriegio atnaujinimo, remonto rinkinys M6x1/M8x1,25/M10x1,5. 88 vnt (YT-1769)
  • 360° vaizdas: Sriegio atnaujinimo, remonto rinkinys M6x1/M8x1,25/M10x1,5. 88 vnt (YT-1769)
9 (9/10)03
50,93 €
Prekės kodas: YT-1769

Aprašymas:

Gamintojas:
YATOYATO
Numeris YT-1769
EAN 5906083917691
HSS plienas medžiaga Steinless 4341
Svoris (kg) 1.1
diapazonas M6-M10

Product description
Professional thread repair kit M6 - M110. Drills and taps are made of high speed steel HSS 4341. Single-thread taps are threaded into which a spiral insert of hard stainless steel is inserted. The insertion knob is used to guide the guide and the punch which breaks the protruding end of the insert.
Application / Application
Set for 3 types of threads:
M6 x 1.0 x 10.8 mm,
M8 x 1.25 x 10.8 mm,
M10 x 1.5 x 13.5 mm.
How to use
- Determine the size of the damaged thread and then select the repair kit in the same size.
- Deform the damaged thread with a drill bit from the set.
- Then tap it with the tap supplied. Tape insert
in the knob for taps. The knob is not included in the set.
- Place the cartridge on the spiral cartridge dial so that the transverse part of the cartridge is in
slot of the knob. Secure the insert with a ring so it does not stretch
during screwing. Secure the screw ring.
- Screw the cartridge completely into the previously threaded hole. Push the knob. With a pinch
Break the transverse part of the cartridge.
- Screw the screw in the repaired thread.

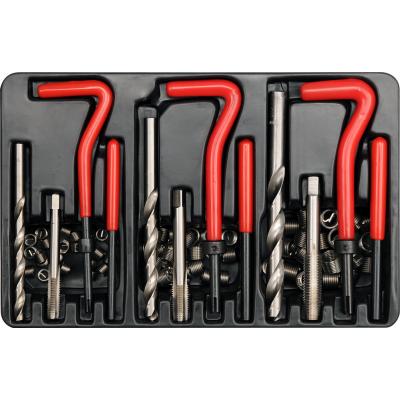

Contents of the package
- Drill bits for drilling damaged thread 3 pcs.
- single threaded thread for threading a new insert 3 pcs.
- 3 spiral inserts
- knobs to screw in spiral inserts 3 pcs.
- punches 3 pcs.
- 1 Allen key
- suitcase
Technical data
Index number YT-1769
EAN 5906083917691
Brand Yato
unit KPL
Gross Weight (kg) 1.1000
Master Carton MC 10
Inner Box IB 5
Size M6-M10






88PCS → 3PCS HSS4341 STEEL TAPS; 3PCS INSTALLATION TOOLS; 3PCS BREAK PIN TOOL; 3PCS HSS4241 TWIST DRILL; 1PC HEX KEY;
75PCS STAINLESS STEEL WIRE THREADS: M6x1.0x10.8MM (25PCS), M8x1.25x10.8MM (25PCS), M10x1.5x13.5MM (25PCS)
