Staklės/giljotina grindų laminatui (28880)

Staklės/giljotina grindų laminatui (28880)
Staklės/giljotina grindų laminatui (28880)
9 (9/10)01
37,70 €
Prekės kodas: 28880

Aprašymas:

Gamintojas:
VORELVOREL
Product description

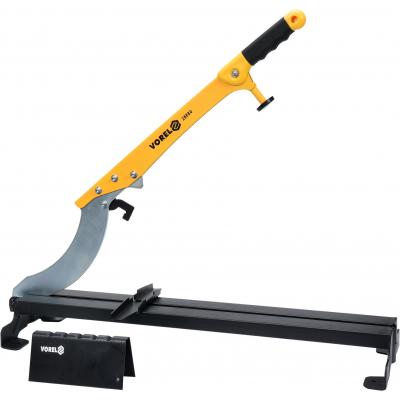

Guillotine to cut floor and wall laminated panels. Made of thick sheet steel. The construction is exceptionally rigid and resistant to deformation caused by strong pressure on the long arm. This guarantees the ease and precision of cutting.
The maximum cutting width is 210 mm. This allows you to cut most of the commercially available panels with typical widths of 130, 150, 160 and 190 mm.
Elements and technical solutions for effective and precise cutting:
* Stable 100 mm wide table, supported on legs with rubber washers and holes for permanent fixing.
* Large arm length of about 520 mm. Minimizes the force of pressure and makes cutting easy
* The guillotine arm is fitted with a high rubber stopper protecting the palm from accidental crushing.
* Blade with special safety profile, cutting panels up to 12 mm thick.
* Additional support for horizontal support when cutting long panels.
Destination / Application
Device for effective cutting of typical laminated panels up to 12 mm thick.
How to use
Place the cut piece on the table by applying a stop to the stop and smoothly push the guillotine arm off the desired part of the panel.
When cutting long pieces, support it with a bracket.
Contents of the package
Guillotine, bracket / stand /
Technical data
Index Number 28880
EAN 5906083011795
Marka Vorel
PCS unit
Gross Weight (kg) 5.7500
Master Carton MC 2
Pal 24
Length [mm] 710
Material galvanized sheet steel
Intended for cutting laminated panels
Surface finish powder-coated
Dimensions [mm] max. Width 210. max. Thickness 12

THICKNESS OF CUTTING BLADE: 5MM WITH ZINC PLATED, BASE: 695*200*80MM, FRAME SIZE: 40*25MM, MAX CUTTING WIDTH: 210MM, MAX CUTTING THICKNESS: 12MM, LENGTH OF HANDLE: 520MM
