Variklio fiksavimo įrankių rinkinys | 3/3 įrankių dėklas | Fiat, Ford, Citroen, Peugeot (4135)

(10/10)

293,76 €

Prekės kodas: 4135

Kiekis:

Aprašymas:

Gamintojas:
BGS-technic

Description
for adjusting the engine timing when renewing the tooth belt, replacing cylinder head gasket, etc. suitable for following models:

Fiat Ulysse, Scudo, Ducato
Lancia Zeta, Phedra
Ford Fiesta, Fusion, Focus, Focus C-Max
Citroen C15, C1, C2, C3 Pluriel, C4, C4 Picasso, C5, C6, C8, DS3, DS4, DS5, Xantia, Xsara, Xsara Picasso, Evasion, Berlingo, Jumpy, Jumper, Saxo, ZX, XM, Evasion, AX
Peugeot 107, 1007, 206 cc, 207, 208, 306, 307 cc, 308, 406, 407, 508, 607, 806, 807, Partner, Expert, Boxer, 206, 106, 605, 205, 405
Lancia / Fiat 2.0 & 2.2 JTD
suitable for engines:

DW12TED4 (4HW), DW10ATED (RHT/RHV/RHW/RHX/RHZ)
Ford 1.4 / 1.6 Duratorq TDCI
Motorcodes: F6JA, F6JB, F6JC, G8DA, G8DB, HHDA, HHDB, HHJA, HHJB
Citroen / Peugeot 1.0 / 1.1 / 1.4 / 1.6 / 1.6 16V, 1.4 / 1.6HDI / 1.8 / 1.8 16V / 2.0 / 2.0 Turbo, 1.9D / 2.0HDI / 2.2HDI / 1.8 16V / 2.0 16V
engince codes:
TU9 (CDY/CDZ), TU1 (HDY/HDZ/HFX/HFY/HFZ), TU3 (KDX/KDY/KDZ/KFX/KFZ),
TU5JP4 (NFU/NFX), TU5 (BDY/BFZ/NFT/NFV/NFW/NFY/NFZ), XU7 (LFW/LFX/LFZ),
EW7J4 (RLZ), XU7JP4 (LGY), XU10 (RFL/RFU/RFW/RFX/RGX/RGY), XU10JP4(RGX/RGY),
EW10A (RFJ), EW10J4S (RFK), EW10D (RLZ), EW12J4 (3FZ), ET3JE (KFU), TU3A/JP (KFV/KFW),
DV4TD (8HW/8HX/8HZ), DV4TED4 (8HV/8HY), DV6ATED4 (9HX/9HY/9HZ), EW10-CVI (RLZ),
EW12 (3FZ), DW8 (WJZ/WJY), DW10 (RHY/RHV/RHZ/RHS/RHM/RHW/RHT/RHR/RHX), DW12 (4HX/4HZ/4HW/4HY), EW7J4 (6FZ),
EW10J4 (RFR), EW10J4D (RLZ)

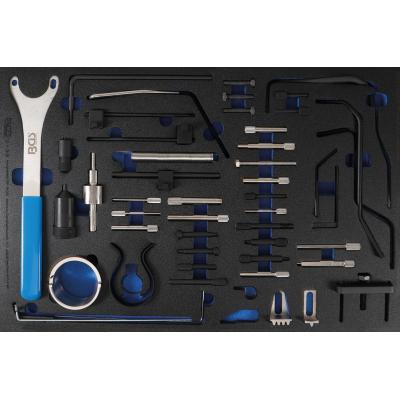

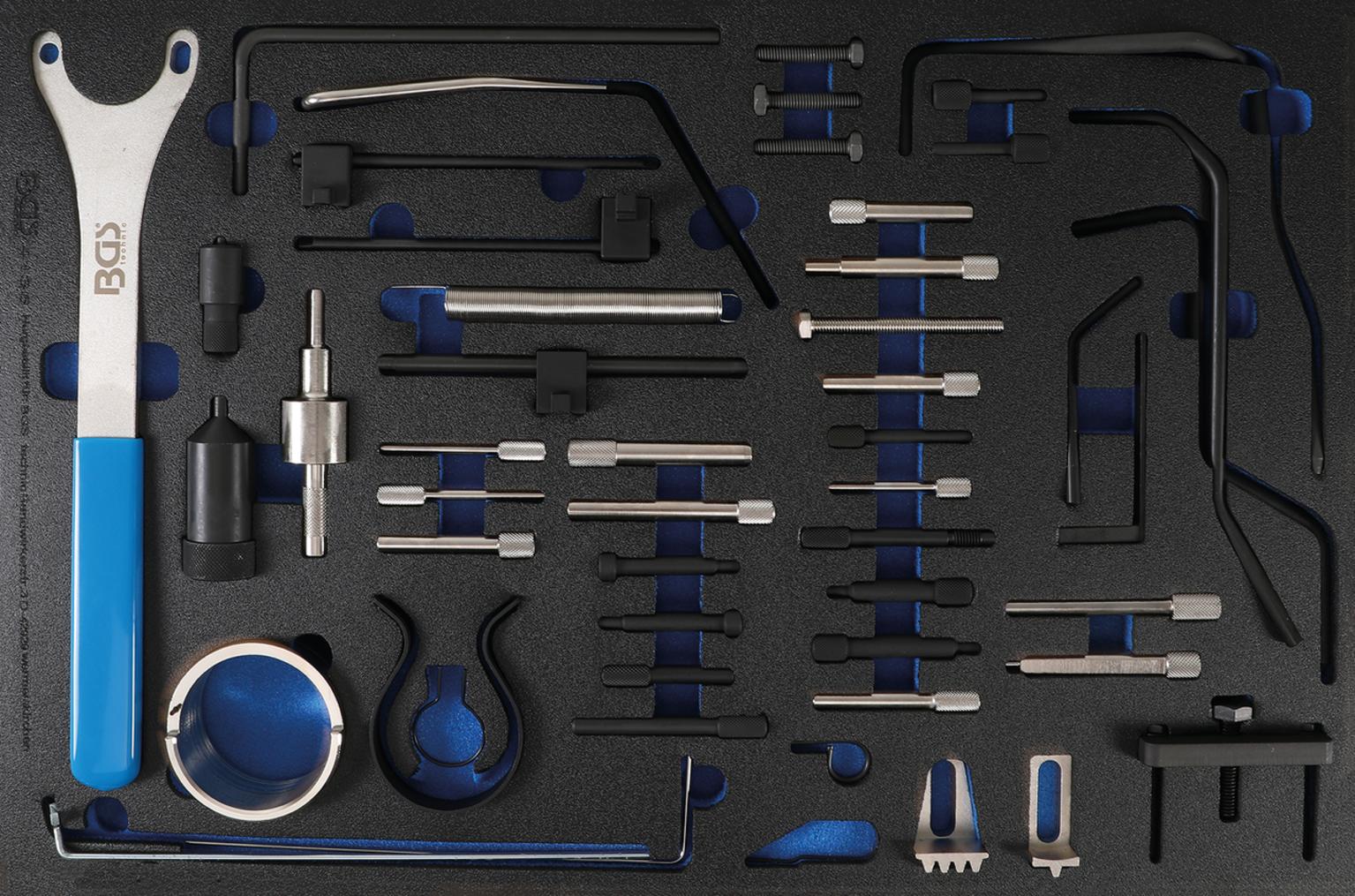

scope of delivery:

flywheel puller, to be used as OEM 0188-P2, 0188-P, 174, 7015-T
tensioner pulley locking levers, to be used as OEM 0188-J1, 0188-J2
tensioner pulley locking pins, to be used as OEM 0188-Q2, 0188-AH, 0189-S2
timing belt retaining clip, to be used as OEM 0132-AK, 0188-AK, 0189-K, 0153-AK, 4533-TAD, MOT 1436
flywheel locking pins, to be used as OEM 0153-N, 0188-Y, 7014-TJ, 7099-TM, 9797-34,
0188-D, 7017-TM, 0132-P, 4507-TL, 7017-TR, 0153-M, 0178-C, 0178-D, 7014-TM, 9767-94, 0189-B, 21-163, 0132-AJ1, 0153-G, 0188-M, 0189-J, 4533-TAC1, 5711-TA, 0189-L, 0189-C, 0189-R, 0153-U, 7019-T, 0132-Q, 0132-QZ, 4507-TA, 9767-27, 0132-X, 0188-Q1, 4507-TJ, 9767-89
tensioner pulley locking pins, to be used as OEM 4200-TH, 0117-AR
tensioning tool, to be used as OEM 0178-E
flywheel locking tool, to be used as OEM 0153-A, 6012-T, 9765-54, 0134-AF, 0134-Q, 0188-F, 9004-T
pulley locking lever, to be used as OEM 0606-A1-A2
tensioner pulley adjusting tool, to be used as OEM 0189-S1
Technical data
Gross weight 4230 g
Depth 408 mm
Width 567 mm
Height 32 mm
