Litavimo stotelė su skaitmeniniu LED ekranu | 900 mm | 60 W (YT-82460)

(10/10)

32,25 €

Prekės kodas: YT-82460

Kiekis:

Aprašymas:

Gamintojas:
YATO

Product description

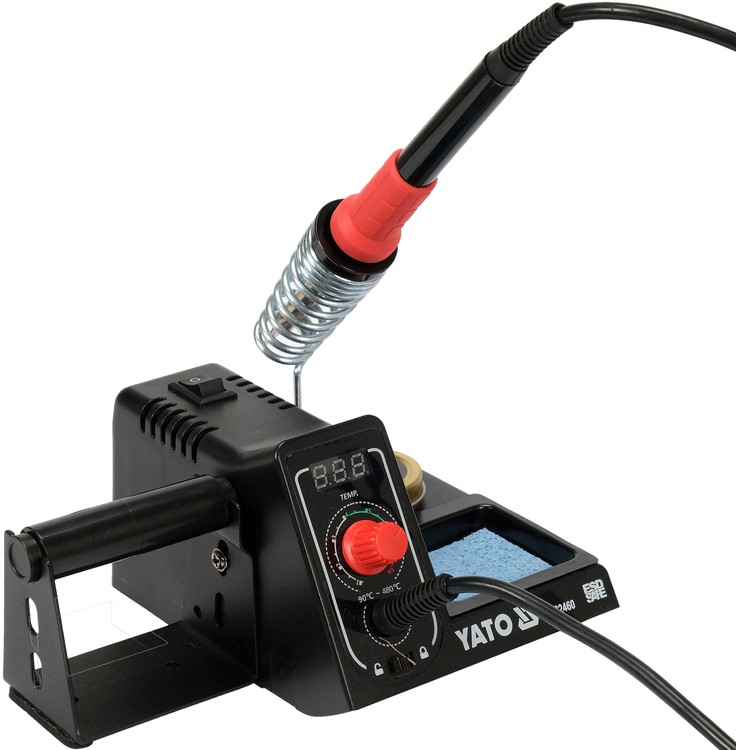

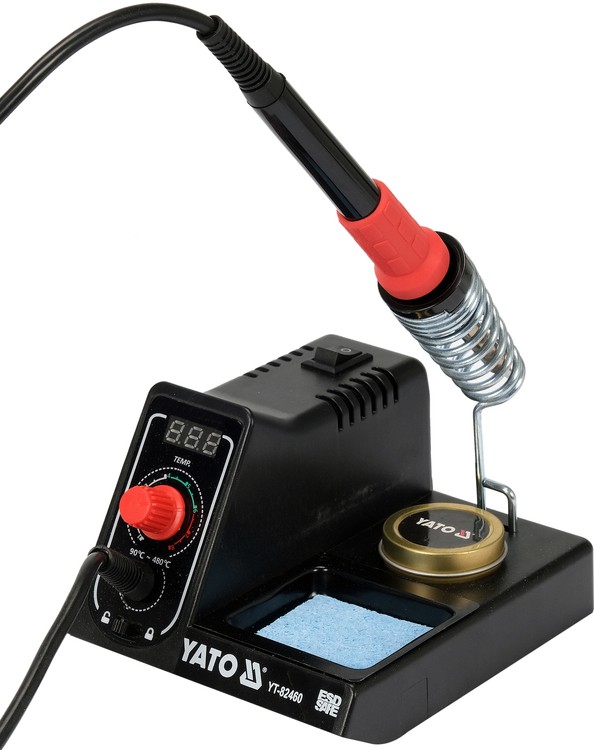

YT-82460 soldering station with digital LED display, temperature regulation and stabilization and hibernation function. A multifunctional housing with a buttstock support, a place for a tin spool and a brass chip tip cleaner included in the set. The station supports a soldering iron with a built-in ceramic heater adapted to the very popular replaceable tips from the 900M series. Relatively high power combined with the necessary functions to facilitate soldering and a solid flask with a silicone, high-temperature-resistant power cord will meet the expectations of both beginner electronics and amateur hobbyists.

power: 60W
temperature range: 90 - 480 ° C
temperature accuracy: + - 2 ° C
temperature stabilization
device hibernation: 10 min
on-off button on the side

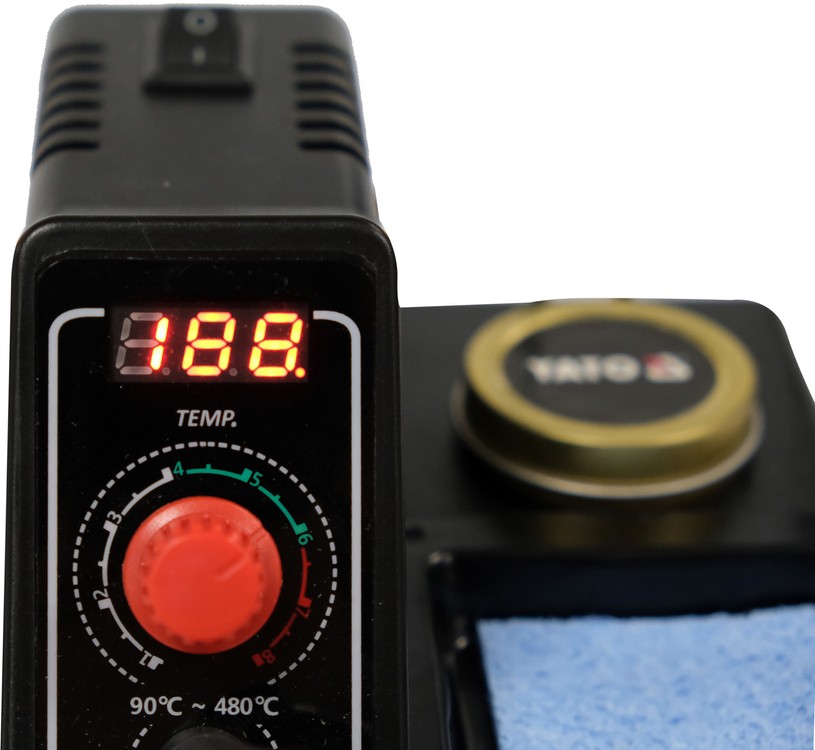

The digital display with blue LED backlight informs us about:
set and real temperature of the tip
the device goes into hibernation mode

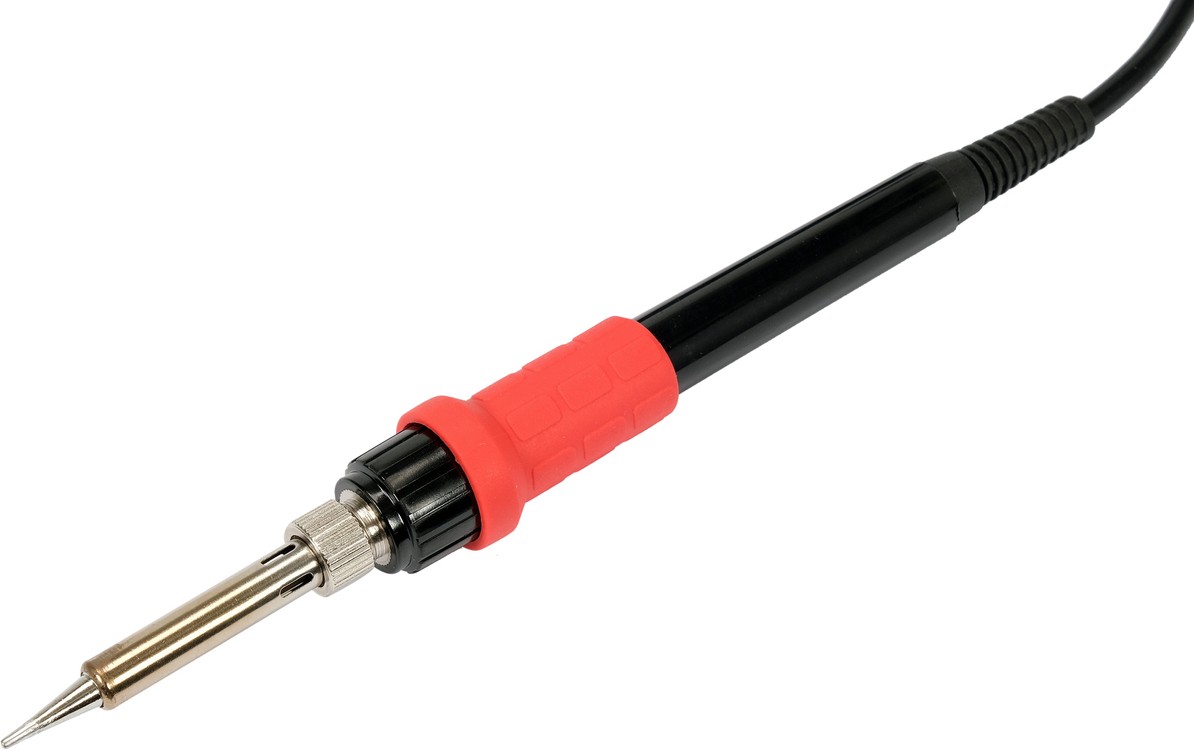

Soldering iron to be put on the stainless steel handle.
heater operating voltage: mains, approx. 230V
tip type: 900M
ceramic heater
heater outer diameter: 3.85 mm
cable length: 100 cm
stock weight: about 50 g
The YT-82460 soldering station is made in ESD-safe technology, which guarantees that excess electrostatic charge will not accumulate on the housing. Thanks to this, we limit the risk of damage to, for example, sensitive SMD circuits. It heats up in about 30 seconds to an operating temperature of 350 ° C.

The temperature stabilization function allows to maintain the set temperature of the tip in various conditions of heat demand for the proper soldering connection. The tip, depending on the size of the soldered element and the soldering field, gives off more or less heat, and the device, using the tip temperature sensor built into the heater, reads its real value on an ongoing basis and compares it to the set one, then, depending on the needs, it increases or reduces the power consumption to maintain the set value. temperature. The best effect of this function is obtained by selecting a tip with an internal diameter as close as possible to the diameter of the heater. We recommend tips with an internal diameter ranging from 4.0 to 4.5 mm

The device's hibernation function allows the station to go into standby mode, which automatically lowers the operating temperature to 200 ° C. Thanks to this, we avoid unnecessary heating of the tip, which significantly extends its life. The function activation time on the YT-82460 is factory-set to 10 minutes.

Parameters
Power [W]: 60
Max temperature of the tip [° C]: 480
